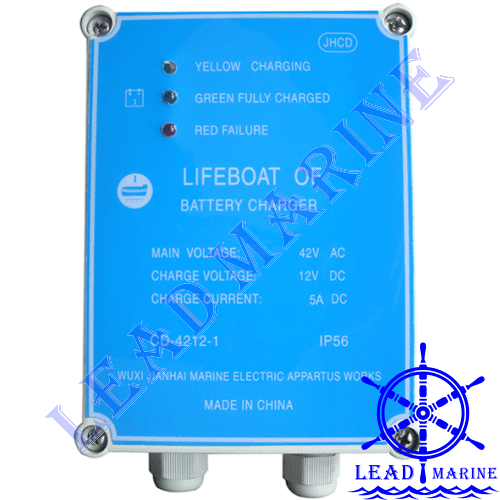

CD-4212-1 Battery Charger Description
Product Name:
CD-4212-1 Battery ChargerModel No.:
CD-4212-1
WUXI JIANGHAI MARINE ELECTRIC APPARATUS WORKS CD4212-1 lifeboat of battery charger, it is specially used for the automatic compensating charge the battery which are used on the lifeboat or ship.
WUXI JIANGHAI MARINE ELECTRIC APPARATUS WORKS CD-4212-1 LIFEBOAT BATTERY CHARGER Technical Specifications
-
Origin:
MADE IN CHINA -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Brand:
JHCD, cnjianghai, JIANGHAI SHIPPING ELECTRIC -
Yellow Lamp:
Charging, CD4212-1 will charge automatically if the voltage of the battery is lower than 13.3V. -
Green Lamp:
Fully Charged, CD4212-1 will stop charge automatically if the voltage of the battery is charged to 14.4V. -
Red Lamp:
Failure, CD4212-1 red lamp will flash there is open circuit, reverse polarity, short circuit. -
Main Voltage:
42V AC -
Charge Voltage:
1x12V DC -
Charge Current:
1x5A DC -
Protection:
IP56 -
Trouble Shooting:
CD-4212-1 yellow lamp flashing, the battery is aging, change the battery. -
Trouble Shooting:
CD-4212-1 red lamp flashing, the output cable is connected reversibly to the battery. -
Warning:
CD4212-1 lifeboat battery charger can only be used to make compensating charge for the battery. -
Important Information:
Always disconnect input VAC (mains) before connecting or disconnecting batteries. -
Working Temperature:
-25℃ ~ 55℃ -
HS Code:
8504409999 -
Dimension:
160 x 120 x 85 mm -
Weight:
3Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
