Home > ZIBO TORCH INDUSTRY > CY2-12-5 LIFEBOAT Battery Charger

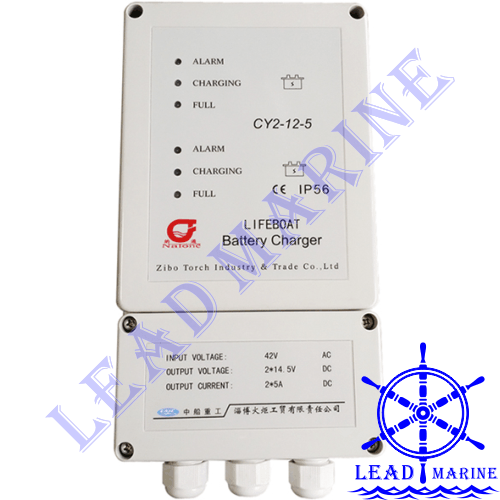

CY2-12-5 LIFEBOAT Battery Charger Description
Product Name:
CY2-12-5 LIFEBOAT Battery ChargerModel No.:
CY2-12-5
ZIBO TORCH INDUSTRY & TRADE CY2-12-5 lifeboat battery charger is suitable for charging the battery which capacity is lower than 150AH, this battery charger is widely used on the lifeboat or ship.
ZIBO TORCH CY2-12-5 LIFEBOAT BATTERY CHARGER Technical Specifications
-
Origin:
MADE IN CHINA -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Brand:
NATONE -
Connection Procedures 1:
Connect the red line of the output cable to the positive of the battery, then blue to the negative. -
Connection Procedures 2:
Connect the input cable to the AC power source. -
Green Lamp:
CHARGING, CY2-12-5 will charge automatically if the voltage of the battery is lower than 12.8V. -
Yellow Lamp:
FULL, CY2-12-5 will stop charge automatically if the voltage of the battery is charged to 14.5V. -
Red Lamp:
ALARM, CY2-12-5 red lamp will flash there is open circuit, reverse polarity, short circuit. -
Input Voltage:
42V AC -
Output Voltage:
2x14.5V DC -
Output Current:
2x5A DC -
Protection:
IP56 -
Trouble Shooting:
CY2-12-5 yellow lamp flashing, the voltage of the battery is high, discharge the battery. -
Trouble Shooting:
CY2-12-5 red lamp flashing, connect the cable correctly. -
Trouble Shooting:
CY2-12-5 charge time is too short, change the battery. -
Warning:
CY2-12-5 lifeboat battery charger can only be used to make compensating charge for the battery. -
Important Information:
Always disconnect input VAC (mains) before connecting or disconnecting batteries. -
Working Temperature:
-25℃ ~ 55℃ -
HS Code:
8504409999 -
Dimension:
243 x 134 x 80 mm -
Weight:
5Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
