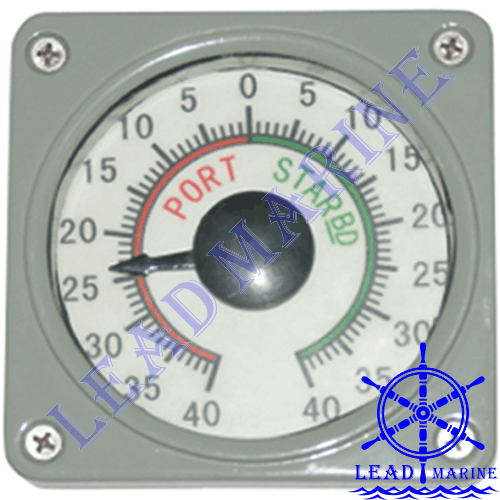

OQF1D-1 Rudder Angle Indicator Description
Product Name:
OQF1D-1 Rudder Angle IndicatorModel No.:
OQF1D-1
JINZHOU OQF1D-1 rudder angle indicator is usually installed in the bridge, capatain room, engine control room of the ships to show the actual position of the boats rudder.
JINZHOU OQF1D-1 Rudder Angle Indicator Technical Specifications
-
Origin:
MADE IN CHINA -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Application:
shows rudder position of ships, installed in bridge, engine control room, capatain room -
Related Model:
OQF1D-1, OQF1E-1, OQF2D-1, OQF2E-1, OQF1D-2, OQF1E-2, OQF2D-2, OQF2E-2, etc... -
Angle Indicator Range:
port 40° to starboard 40° -
Mount Type:
flush mounting type -
Voltage:
AC220V, AC110V, DC24V -
Angel Indicator Size:
120mm, 150mm -
Lighting Dimmer:
with backlight dimmer -
Rudder Angle Indication:
we offers rudder angle incication systems like 4-20mA current loop system, ±10V system, CAN systems. -
Features:
complete and type approved system, high vibration resistance, superior accuracy -
Protection:
IP20 -
HS Code:
8543709990 -
Dimension:
150x150x120mm -
Weight:
2Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
