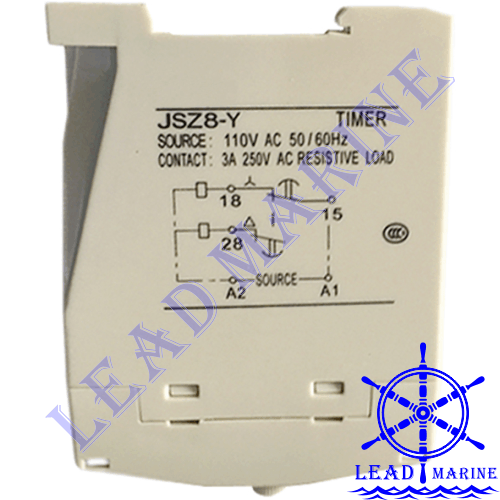

JSZ8-14Y MIND TIMER RELAY Description
Product Name:
JSZ8-14Y MIND TIMER RELAYModel No.:
JSZ8-14Y
MIND JSZ8-14Y timer relay is widely used for timing control units of electric auto control system on ships, JSZ8 electrical time delay relay can make and break circuits according to setting time.
MIND JSZ8-14Y TIMER RELAY Technical Specifications
-
Origin:
Made In China -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Features:
small size, high timing accuracy, high reliability, long life, etc... -
JSZ8-Y Functions:
timing for star-delta motor starters, timed Y to delta -
Changing Time:
The changing time of star to delta of JSZ8-Y is 50ms or 100ms. -
Option Contact Type:
JSZ8-A, JSZ8-G, JSZ8-C, JSZ8-F, JSZ8-Y, JSZ8-X -
Option Timing Type:
JSZ8-12Y, JSZ8-13Y, JSZ8-14Y, JSZ8-15Y, JSZ8-16Y -
Contact:
3A 250V AC resistive load, 220V 0.5A, 24V 3A, 24V 0.5A -
Source:
AC24V, AC110V, AC220V, DC24V, DC48V -
Variety of Versions:
A: on delay, G: interval timing, C: with inst. contact, F: off delay, Y: timing for star-delta motor starters -
Timing Range:
12: 1~10 s, 13: 3~30 s, 14: 6~60 s, 15: 0.3~3 min, 16: 0.5~5 min -
Changing the Timing:
JSZ8 timer have 2 different timing range s/min, is easily selected by a changeover switch. -
Reset Time:
60ms -
HS Code:
8536490090 -
Dimension:
105 x 75 x 22.5 mm -
Weight:
0.5Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
