Q96D-M Insulation Monitor Description
Product Name:

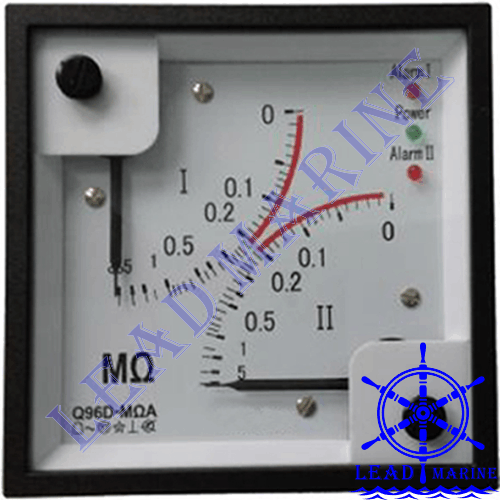

Q96D-M Insulation MonitorModel No.:
Q96D-MΩA
Shanghai zi yi marine instrumentation SFAIF Q96D-MΩA double insulation monitor can monitoring insulation resistance of double AC networks at same time.
SFAIF Q96D-MΩA Double AC Insulation Monitor Technical Specifications
-
Origin:
Made In China -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Double AC Network:
Network I, Network II -
Voltage:
220V, 380V, 400V, 450V -
Accuracy Class:
1.5 -
Measurement Range:
0~5MΩ -
Alarm Preset Value:
10kΩ, 30kΩ, 60kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ -
Protection:
IP44, IP56 -
HS Code:
9030332000 -
Dimension:
96 x 96 x 121 mm -
Weight:
0.5Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
