F96-BM Insulation Monitor Description
Product Name:
F96-BM Insulation MonitorModel No.:
F96-BMΩ

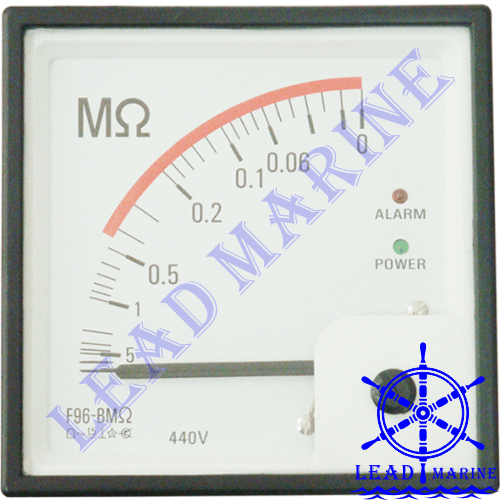

Shanghai Yi Tai Instruments F96-BMΩ AC insulation monitor is widely used on the ships to monitoring the insulation resistance at the AC net work system below 750V, alarm signal will generate if the resistance lower than the preset value.
SHANGHAI YI TAI INSTRUMENTS F96-BMΩ AC Insulation Monitor Technical Specifications
-
Origin:
Made In China -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Voltage:
100~120V, 220~230V, 380~415V, 440~460V -
Related Type:
F48-BMΩ, F72-BMΩ, F96-BMΩ, F144-BMΩ -
Scale Develop Angle:
90°, 240° -
Spare Parts:
Spare parts like external converter YT-BMΩ is available. -
Accuracy Class:
1.5 -
Measurement Range:
0~1MΩ, 0~5MΩ, 0~10MΩ -
Alarm Preset Value:
10kΩ, 30kΩ, 60kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ -
Protection:
IP44, IP56 -
HS Code:
9030332000 -
Dimension:
96 x 96 x 130 mm -
Weight:
0.5Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
